Indoor Mini Cold Room Walk In Cooler
Components
A basic indoor cold storage consists of the following components: cold room panels, cold room doors, refrigeration equipment, and spare parts.
|
cold room panels |
|
| Cold room temperature | Thickness of panel |
| 5~15 degree | 75mm |
| -15~5 degree | 100mm |
| -15~-20 degree | 120mm |
| -20~-30degree | 150mm |
| Lower than -30degree | 200mm |

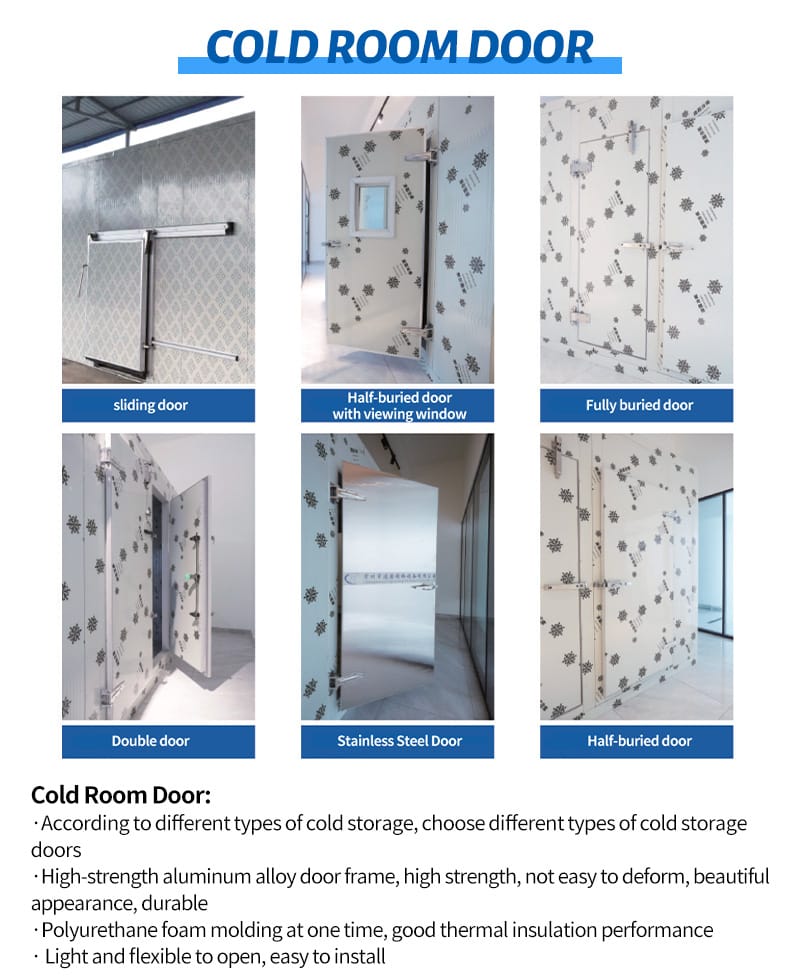

cold room doors

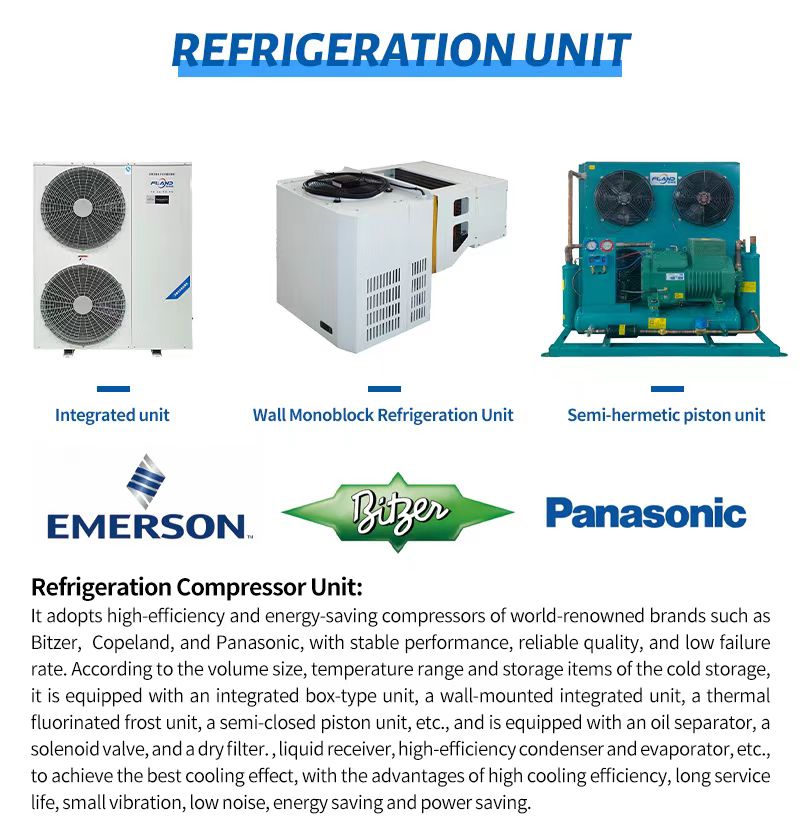

Refrigeration equipment
Indoor cold room applications
Indoor cold room is widely used in food industry, medical industry, and other related industries.
In food industry, cold room is usually used in food process factory, slaughterhouse, fruit and vegetable warehouse,supermarket,hotel, restaurant, etc.
In medical industry, cold room is usually used in hospital, pharmaceutical factory, blood center, gene center, etc.
Other related industries, such as chemical factory, laboratory, logistics center, they also need cold room.
| Application for example | Room Temperature |
| Fruit & Vegetable | -5 to 10 ℃ |
| Chemical factory,medicine | 0 to 5 ℃ |
| Ice cream, ice storage room | -10 to -5 ℃ |
| Frozen meat storage | -25 to -18 ℃ |
| Fresh meat storage | -40 to -30 ℃ |
Production Show
FAQ
What is the application of the cold room?
It will affect the temperature of cold room needed to be, and the choice of thickness of pu panel and material covered on panel.
What is the size of the cold room?
It will affect the choice of condensing unit and air cooler, basing on the cold room temperature.
Which country will the cold room be located in? How about the climate?
It will affect the choice of voltage and condenser, if the temperature is high all the year, we need to choose condenser with bigger evaporation area.
